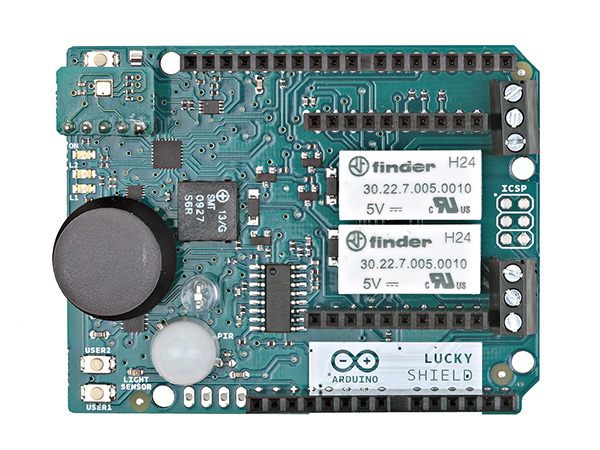

[43호] 아두이노로 만드는 사물인터넷(IoT), Arduino LUCKY SHIELD 출시

Arduino

아두이노로 만드는 사물인터넷(IoT),

Arduino LUCKY SHIELD 출시



사물인터넷(IoT)이 활성화되는 것을 넘어서 오픈소스로 누구나 사물과 사물을 연결할 수 있는 시대이다. 마음만 먹으면 단 5일 만에 실생활에서 원하는 사물인터넷(IoT) 전자제품을 직접 제작할 수 있다고 한다.
Arduino에서 제품명 그대로 운이 좋은 “Arduino LUCKY SHIELD”가 출시되었다. 대기압, 자세제어, 밝기, 온도, 모션, 온습도 등 대부분의 센서와 릴레이, 부저, 조이스틱까지 모두 통합으로 구성되어 보다 편리하게 IoT를 구현할 수 있다. 또한 간단한 컨트롤러와 OLED 디스플레이 시스템으로 변경할 수 있어 IoT를 위한 최적화된 제품이다. 실드는 외부 전원을 필요로 하지 않으며 PCB의 최대 길이와 폭은 각각 2.7, 2.1인치 (68.6X53.4 mm)이다. 아두이노 보드 5V, 3.3V 표준과 호환이 가능하다.
각종 여러 센서와 장비들을 아두이노 보드에 따로 부착해야 했지만, 이런 번거로움 없이 센서들을 잘 활용하여 다양한 나만의 DIY 프로젝트에 사용할 수 있다.
현재 디바이스마트 홈페이지(http://www.devicemart.co.kr/)에서 구매 가능하다.
상세 사양은 다음과 같다.

상세 사양
· 작동 전압 : 3.3VDC / 5VDC
· LEDs: POWER(Green), LED1(Yellow), LED2(Yellow)
· 조이스틱: 5방향 택트 스위치
· 부저: MINIMUM SPL 90dBA RESONANT FREQUENCY 500 Hz
· 릴레이: 최소 50000(NC) at 250VAC, 8A (저항 로드) 최소 50000 at 30VDC, 5A (저항 로드)
· PIR 센서: 캡슐형 TO5 스펙트럼 응답 7~14μm, 투과율≥77%, 필드뷰 139º
· 조도 센서: 최대 감도 파장 630nm, 작동 온도 -40 ~ +85°C
· 온습도: 작동 온도 -40 ~ +85°C
· 압력 센서: 작동 압력 범위 300 ~ 1100hPa
· 자력계: E-나침반, 전체 범위 ±1000T, 출력 데이터 범위 (ODR) up to 80Hz
· 가속도: G-센서, 초고속 데이터 출력 시간, ~700μs ±8g 전체 범위 3축, 45° 경사 출력





Overview

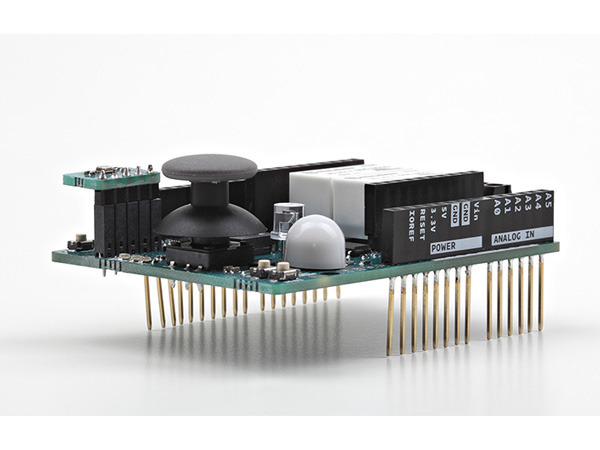

Arduino Lucky Shield is an easy way to use your Arduino boards, that grants you access to barometric pressure, relative altitude, luminosity, temperature, motion and presence. You can also turn it into a simple controller and OLED display system. It is the perfect shield for IoT.

Recently a restyling of the shield has been made. However the board maintained the same features.

Warning:
If you want to use the Arduino IDE 1.8.x then download the Lucky library and import it into the IDE.
You can download it here.

FEATURES
Relays OMRON G6RL-1 (5V DC)
PIR Sensor MOSDESIGN M7616
Ambient Light Sensor EVERLIGHT ALS-PT19-315C/L177/TR8
Humidity Sensor BOSCH SENSORTEC BME 280
Temperature Sensor BOSCH SENSORTEC BME 280
Pressure sensor BOSCH SENSORTEC BME 280
3-axis magnetometer NXP MAG3110
3 Axis accelerometer NXP MMA8491Q
Buzzer PUI AUDIO SMT-0927-S-6-R
Joystick 5-directional tact switch
GENERAL
Operating Voltage 3.3 V / 5 V
Extra DogOLED support
PCB size 53 x 68.5 mm
Weight 0.054 Kg
Product Code A000125



Techniacal specifics

Operating voltage:  3.3 VDC / 5 VDC
LEDs:  POWER (Green) . LED1 (Yellow) . LED2 (Yellow)
Joystick: 5-directional tact switch
Buzzer:  MINIMUM SPL   90 dBA RESONANT FREQUENCY  500 Hz
Relay: 50000 operations min (NC) at 250VAC, 8A (resistive load) 50000 operations min at 30 VDC, 5A (resistive load)
PIR sensor: Encapsulation type TO5, Spectral response 7~14μm, Transmittance ≥77%, Field of view 139º
Ambient light sensor: Peak sensitivity wavelength 630nm , Operating temperature  -40 ~ +85°C
Temperature / humidity: Operating temperature  -40 ~ +85°C
Pressure sensor: Operating pressure range  300 ~ 1100 hPa
Magnetometer: E-compass, Full-scale range ±1000 T, Output data rates (ODR) up to 80 Hz
Accelerometer: G-sensor, Ultra-fast data output time, ~700 μs ±8g full-scale range 3-axis, 45° tilt outputs



Power
The shield doesn’t need external power. It will be provided by the Arduino base board, through the 5V and 3.3V pins of the base.

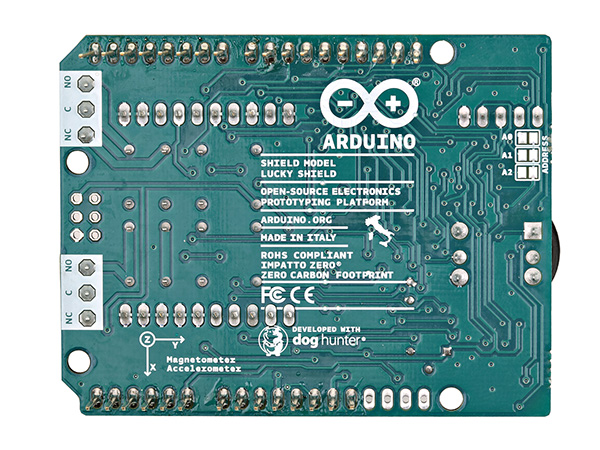

Physical Characteristics
The maximum length and width of the Lucky Shield PCB are 2.7 by 2.1 inches,respectively (68.6 x 53.4 mm). Four screw holes allow the Shield to be attached to a surface or case. Note that the distance between digital pins 7 and 8 is 160 mil (0.16″), not an even multiple of the 100 mil spacing of the other pins.
Compatible Boards
The shield is compatible with all Arduino board 5V and 3.3V standards.
